Connect to MySQL

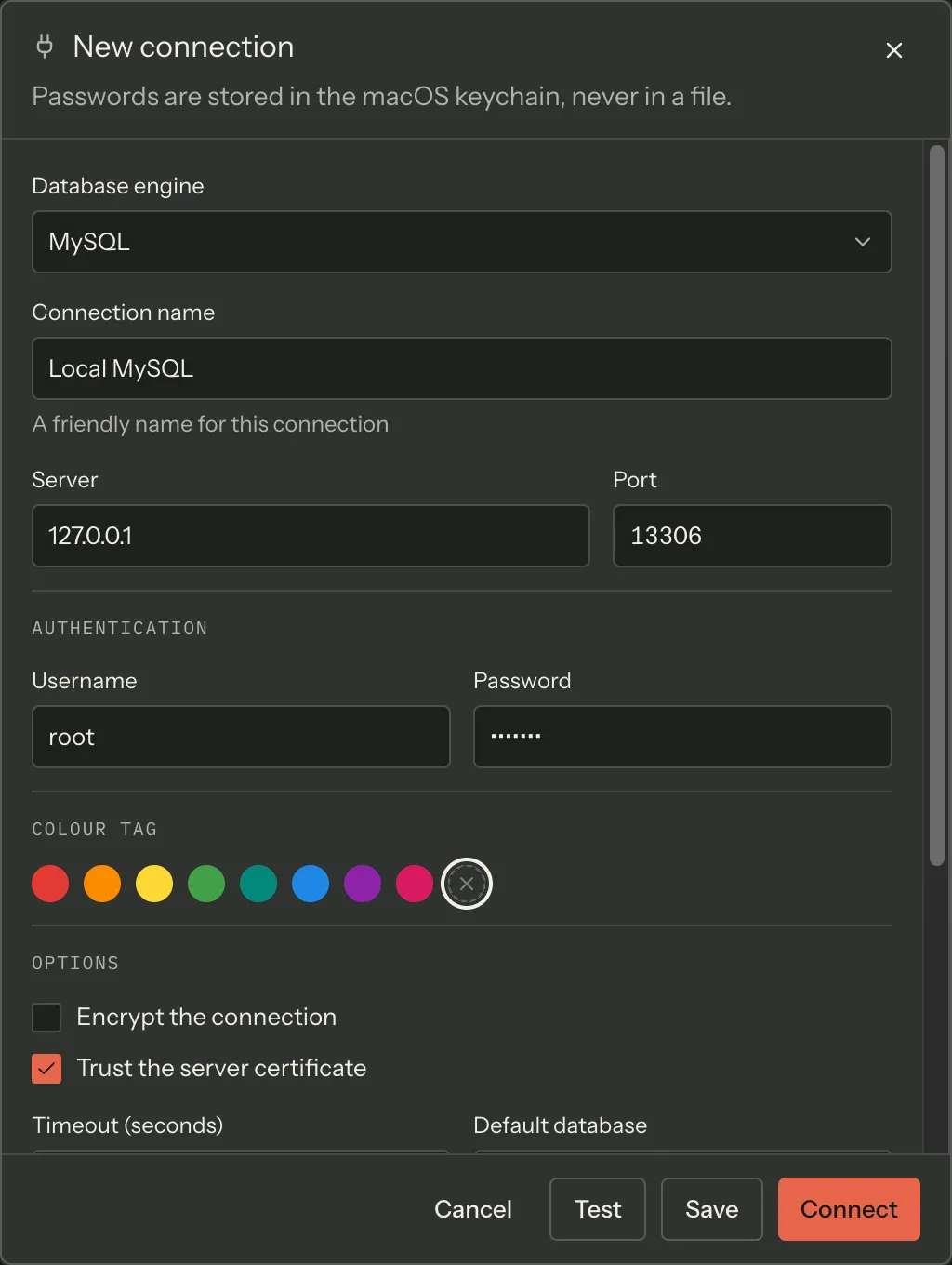

Open the connection editor, then set Database engine to MySQL. Switching the engine moves
the port to 3306 and, if the username is still blank or still another engine’s convention, sets
it to root.
The fields
Section titled “The fields”| Field | Default | Notes |
|---|---|---|
| Connection name | — | Required to save; not required to test |
| Server | — | A pasted host:port is split across Server and Port when you leave the field |
| Port | 3306 | |
| Authentication type | Password Authentication | The only mode MySQL offers, so the picker is hidden |
| Username | root |
|
| Password | — | Goes to the system keychain, never to a file |
| Colour tag | none | |
| Encrypt the connection | on | |
| Trust the server certificate | on | |
| Timeout (seconds) | 30 | |
| Default database | blank → no database selected | The greyed mysql in the field is a placeholder, not a value — see below |
| Collation | Server default | MySQL only — see below |
| SSH tunnel | off | See Connect over an SSH tunnel |
Because MySQL offers exactly one authentication mode, the Authentication type picker is not rendered at all — unless a profile saved earlier holds a mode MySQL does not offer, in which case the picker appears so you have something to correct.
Collation
Section titled “Collation”MySQL is the one engine with a Collation field. It sets the connection’s character set, and the field’s own hint explains why you would touch it: match your server’s collation to avoid “Illegal mix of collations” errors.
| Option | |
|---|---|
| Server default | Send nothing; the server decides |
utf8mb4_0900_ai_ci |
MySQL 8.0 and later |
utf8mb4_unicode_ci |
|
utf8mb4_general_ci |
|
utf8mb4_bin |
|
utf8_general_ci |
Legacy |
The two checkboxes map onto mysql2’s ssl option:
| Encrypt | Trust the server certificate | Result |
|---|---|---|
| off | — | No ssl option is sent |
| on | on | TLS, certificate not verified |
| on | off | TLS, certificate verified against the system trust store |
Default database, and what blank actually means
Section titled “Default database, and what blank actually means”The greyed mysql in the Default database field is placeholder text, not a value. Leaving
the field blank sends no database at all to the driver, so the connection opens with no
database selected and an unqualified SELECT … FROM users fails with “No database selected”
until you pick one in the explorer or write USE.
This is where MySQL differs from the other two engines. PostgreSQL falls back to the postgres
database when the field is blank; MySQL has no such fallback, and its pool is keyed as
<profile>:__default__ to record exactly that — “this pool has no database”, not “this pool is
on mysql”.
If you want a database selected from the moment you connect, type it into the field.
One pool per database
Section titled “One pool per database”Like PostgreSQL, MySQL connections are pooled per database rather than per server: the pool key is the profile plus the database name, so the explorer’s database switcher opens a second pool rather than repointing the first. Every pool belonging to one profile shares that profile’s SSH tunnel, if it has one, and all of them are discarded together if the tunnel dies.
MariaDB
Section titled “MariaDB”Joinery has no separate MariaDB engine. A MariaDB container is detected as a MySQL container,
and MariaDB servers are reached with the MySQL engine and the mysql2 driver.
Where this page's facts come from
| Claim | Source |
|---|---|
| Default port 3306 | packages/shared/src/types/connection.types.ts:10-14 |
Switching engine sets the port and the conventional username root |
packages/renderer/src/features/connections/form-model.ts:108-113, 289-310 |
| MySQL offers only Password Authentication | packages/renderer/src/features/connections/form-model.ts:95 |
| The picker is hidden unless the engine offers a choice, or the stored mode is invalid for it | packages/renderer/src/features/connections/connection-editor.tsx:313-317 |
mysql is placeholder text only, never submitted |
packages/renderer/src/features/connections/form-model.ts:98-106, connection-editor.tsx:451-453 |
A blank Default database sends database: undefined to the driver |
packages/main/src/services/sql/provider/mysql-provider.ts:32 |
The no-database pool is keyed <profileId>:__default__, unlike PostgreSQL’s postgres fallback |
packages/main/src/services/sql/connection-pool.ts:725-726 vs :598-599 |
| The collation options, and the “Illegal mix of collations” hint | packages/renderer/src/features/connections/form-model.ts:116-123, connection-editor.tsx:465-479 |
Collation is sent as the connection’s charset; blank sends nothing |
packages/main/src/services/sql/provider/mysql-provider.ts:33 |
ssl: profile.encrypt ? { rejectUnauthorized: !profile.trustServerCertificate } : undefined |
packages/main/src/services/sql/provider/mysql-provider.ts:34 |
| Encrypt on / trust cert on are the shipped defaults | packages/renderer/src/features/connections/form-model.ts:152-153 |
| MySQL pools are keyed per database and share the profile’s tunnel | packages/main/src/services/sql/connection-pool.ts:117, 194-246 |
| MariaDB images are classified as MySQL | packages/main/src/services/docker/detector.ts:65 |
